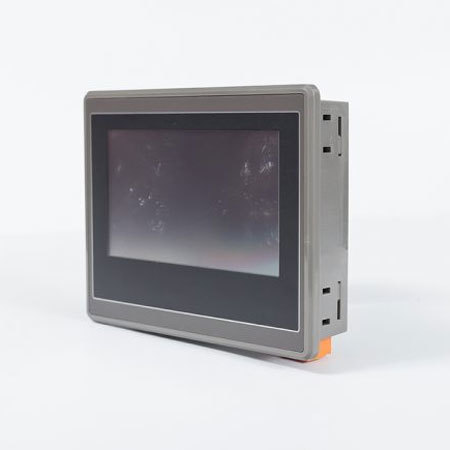

4.3 Inch Human Machine Interface
Product Code : AST-043KHS10
Product Description
Specification :
- Model Type : AST-043K
- Size of the Size : 4.3"
- Resolution Max. Resolution : 480*272
- Display type Display type : 65536 TFT LCD with LED Backlight ,Max. colors 16-bit
- Hr Backlight life : 20000 /hrs
- CD /m2 Display contrast : 250 : 1
- Touch the Touch panel : 4-wire analog touch panel
- CPU central processing unit : ARM926EJ-S 32, RISC ARM9 32Bit
- Graphics accelerator Graphics accelerator : 2D engine graphics accelerator
- Battery memory Backup SRAM : 128KB
- Working memory (OS) Working memory : 32M
- Application memory (AP) Program memory : 8MB
- Data File Data memory : 128M, 10:N/A, 20:128M
- Micro SD card expansion slot Micro SD slot : N/A
- Calendar (clock) real-time clock (RTC) : Yes (disposable batteries, use time of 3 years)
- Max screen : Within 30 pages
- Macro : Max. 100 line macro instruction
- A Serial port Serial interface : COM1 : RS232 COM2 : RS422/485 COM3 : RS485 (DB9) 1
- USB : 1 master,1 Slave (USB2.0)
- State Ethernet : 1/2 : N/A 4 : (10/100M )
- The Front function keys : N/A
- Front USB Front USB : N/A
- Input voltage : 24VDC±10%
- Power-on power Consumption : 13W
- Operating temperature : 0-50℃
- Storage temperature : -20-60℃
- Relative humidity : 10%-90%
- Front panel waterproof and dustproof grade Ingress protection : NEMA4/IP65
- Resistance to shock vibration : 10-55Hz (X, Y, Z three axial, 1G, 30 minute shock test)
- EMI : FCC Part 15 Class A
- CE : EN61000-6-2,EN61000-6-4
- Cooling method : Natural cooling
- Panel size (w * h, mm) : 130.0*106.2
- Cutout dimension (A*B mm) : 119.0*93.0
